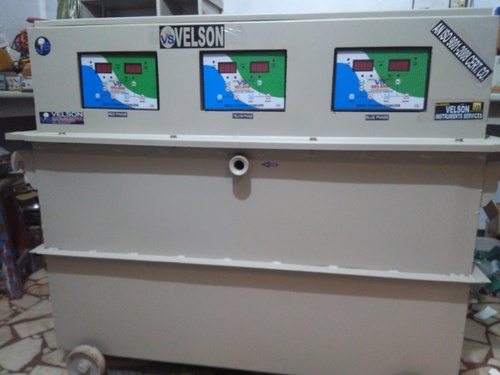

Servo Controlled Voltage Stabilizers

Servo Controlled Voltage Stabilizers
Servo Controlled Voltage Stabilizers
Product Code : SC 01
Brand Name : VELSON INSTRUMENTS SERVICES
Product Description

Our offered Servo Controlled Voltage Stabilizer is used for providing stable voltage supply to equipments in single or three phase system when voltage supply is erratic and unbalanced. Installing this equipment in your home of office can prevent motor loss which substantially increases when voltage supply is unstable. We use excellent quality material so that our stabilizer has long service life.  These are manufactured under the supervision of expert engineers in our sound production unit where we pay complete attention to precise engineering. These Servo Controlled Voltage Stabilizers are widely used in Computers / Servers, In Line Distribution, Die Making Machines, Glass Cutting M/cs, Water Purifying Plants, Photo Labs, Laboratory Equipments and PLCs. These can be obtained by our customers at reasonable prices.



 CAPACITy 1 KVA TO 100 KVA (SINGLE PHASE)
 3 KVA TO 2000 KVA (THREE PHASE)
 INPUT VOLTAGE RANGE 150 V - 270 V, 170 V TO 270 V (SINGLE PHASE)
 260 V TO 470 V, 300 V TO 470 V (THREE PHASE)
 (OTHER RANGES AVAILABLE ON SPECIAL ORDER)
 OUTPUT VOLTAGE 230 V / 240 V SINGLE PHASE (ADJUSTABLE)
 400 V TO 415 V THREE PHASE (ADJUSTABLE)
 REGULATION + 1% OR BETTER
 SUPPLY FREQUENCY 47 MHz - 53 Hz
 EFFICIENCY > 98.6%
 EFFECT OF LOAD POWER FACTOR NIL
 WAVE FORM DISTORTION NIL
 RATE OF CORRECTION BETTER THAN 36  V / SEC. IN AN
 BETTER THAN 20 V/SEC. IN ON AN
 DUTY CYCLE 100% CONTINUOUS
 RESPONSE TIME LESS THAN 10 MS
 COOLING AN ON AN
 OVERLOAD CAPABILITIES UP TO 200% MOMENTARILY
 NO LOAD LOSSES LESS THAN 0.8% OVER ENTIRE RANGE
 SUITABILITY SUITABLE FOR 3 PHASE UNBALANCED/BALANCED  SUPPLY & UNBALANCED / BALANCED LOAD
 MOUNTING ON WHEELS
 EARTHING TWO NUMBERS OF EARTHING TERMINALS
 CABLE TERMINATION BOX INPUT/OUTPUT CONNECTIONS
 AMBIENT TEMPERATURE -100 C TO 500 C
 RELATIVE HUMIDITY UP TO 95%
